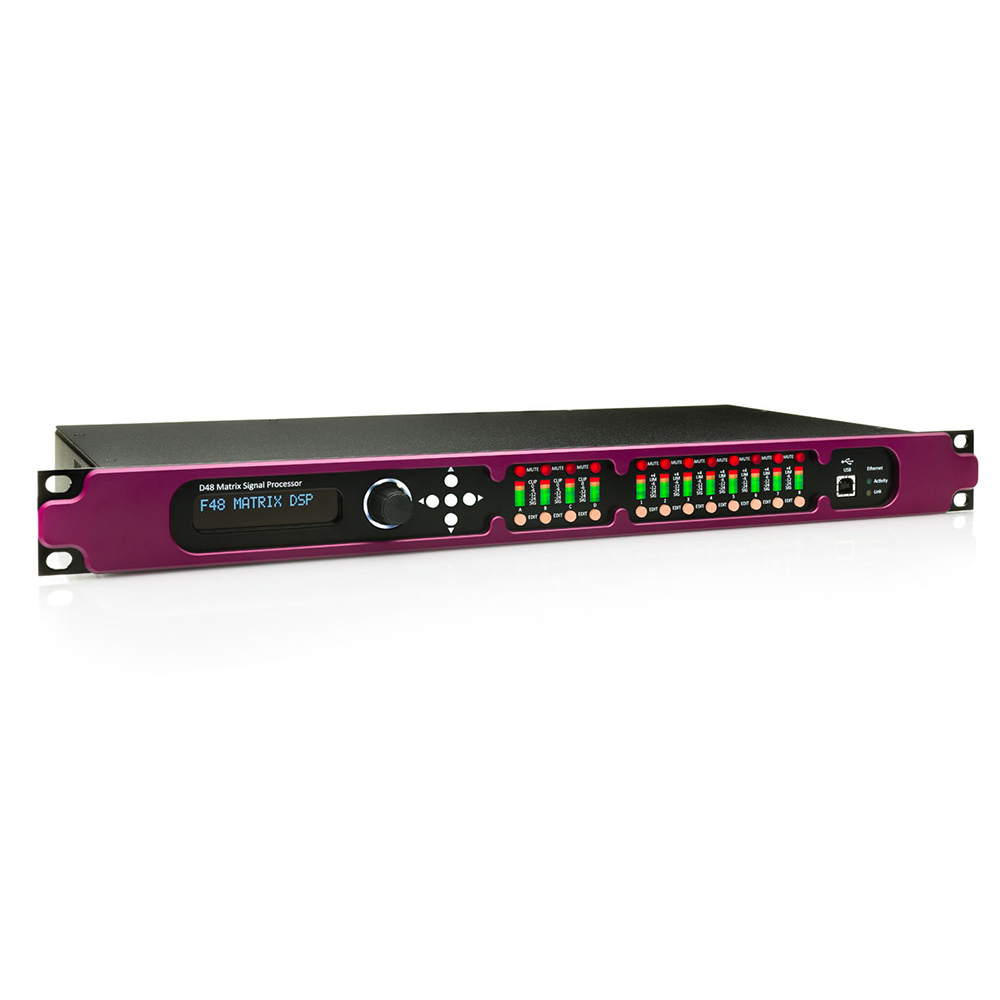

Full Fat Audio FFA 48S – MATRIX DSP Hire

Description In Stock At Supplier. Usually ships in 1-3 business days. Trade enquiries welcome. Found a lower price? Let us know Exceptional sound quality and user versatility FFA F48S has premium sound quality with instant access to parameters using front panel controls for tour or FOH sound Inputs and outputs are software switched in channel pairs between analogue and AES/EBU. The F48S software flexibility ensures ease of system design. Audio compression is specified on each input. High pass filter, 8 bands of parametric EQ, a 28 band graphic EQ, 3 bands of dynamic EQ and up to 1.3 seconds of delay are all part of the specification. Routing to outputs can be configured to either mix-matrix mode, free-routing or several pre-configured routing options. Flexible channel linking enables quick and easy configuration of common loudspeaker systems.  Extensive filter types are specified with 16 bands of parametric EQ and up to 1.3 seconds of delay. The limiter section features Predictive eXcursion Limiter (PXL) algorithm designed to offer precise loudspeaker power control with the lowest distortion. Front panel control gives instant mute of input or output, editing of all parameters and recall of presets. FATWARE Ethernet-based control software for PC, Mac and iPad gives the ability to not only control all the devices on a network but also to store preset memories and pre – configure systems offline. The unit has an output matrix of all channels and have 4 XLR balanced audio inputs and 8 XLR balanced audio outputs. Features at a glance 4 Analogue Inputs, 8 Analogue Outputs AES Digital Inputs and Outputs with sample rate conversion from 24 to 96kHz Input Processing Features: – Soft Knee Compressor – 8 Parametric EQs -24dB/Oct HPF -28 Band Graphic EQ -3 bands of Dynamic EQ -Gain, Polarity, Delay (up to 1.3s) Routing Matrix Modes: Mix Matrix, Routing Matrix, Preset Configurations (2×4, 4×2, 1×8, 2×3 2) Output Processing Features: 16 Parametric EQs Crossover Filters up to 48dB/Oct Gain, Polarity, Delay (up to 1.3s), PXL Limiters Remote control via 100Mbps Ethernet, USB Type B Up to 30 presets may be stored for offline recall Suitable Applications Ideally suited for tour or permanent installation Analogue Inputs 4 Electronically Balanced CMRR >60dB @ 1kHz Maximum Level >20dBu Input Impedance 10kΩ Balanced Analogue Outputs 8 Electronically Balanced Maximum Level >20dBu Source Impedance <60Ω Frequency Response (20Hz to 20kHz) /-0.4dB Dynamic Range >110dB unweighted (in to out analogue) THD N (-10dB @ 1kHz) 0.0007% Latency 0.896ms (in to out, analogue, 96kHz) Power 90-250VAC, 50-60Hz, <40W AES Outputs 4 x 2 Channel Transformer Balanced Sample Rate 96kHz Source Impedance 110Ω Frequency Response (20Hz to 20kHz) /-0.4dB Dimensions 44 x 213 x 482mm (1.75 x 8.4 x 19 inches) Weight 3.2kg Net, 3.9kg Shipping PC compatible remote control software with USB and Ethernet access. Full control of all DSP, routing and configuration of multiple FFA DSP units with ability to set up systems offline and store/load presets and preset libraries. Mac and iPad control software available now
